Model No. MDC400 SUCTION CAPACITY (CMH/CFM) 680/400 OVERALL DIMENSIONS (L X W X H) 600 X 530 X 1020 mm MOTOR POWER 1 HP MOTOR SPEED 2880 RPM POWER SUPPLY 3 PHASE / 50Hz RATED CURRENT 1.3 A NOISE LEVEL <78 dB STATIC PRESSURE 150mm OF WG INLET SIZE 100mm/50mm x 2 no’s/40mm x3 no’s FILTER DETAILS FILTER SURFACE 20 sq. ft TYPE OF FILTER FILTER BAG FILTER MATERIAL Non-Woven Needle Felt Polyester FILTER EFFICIENCY 99% Efficiency @ 5 Microns

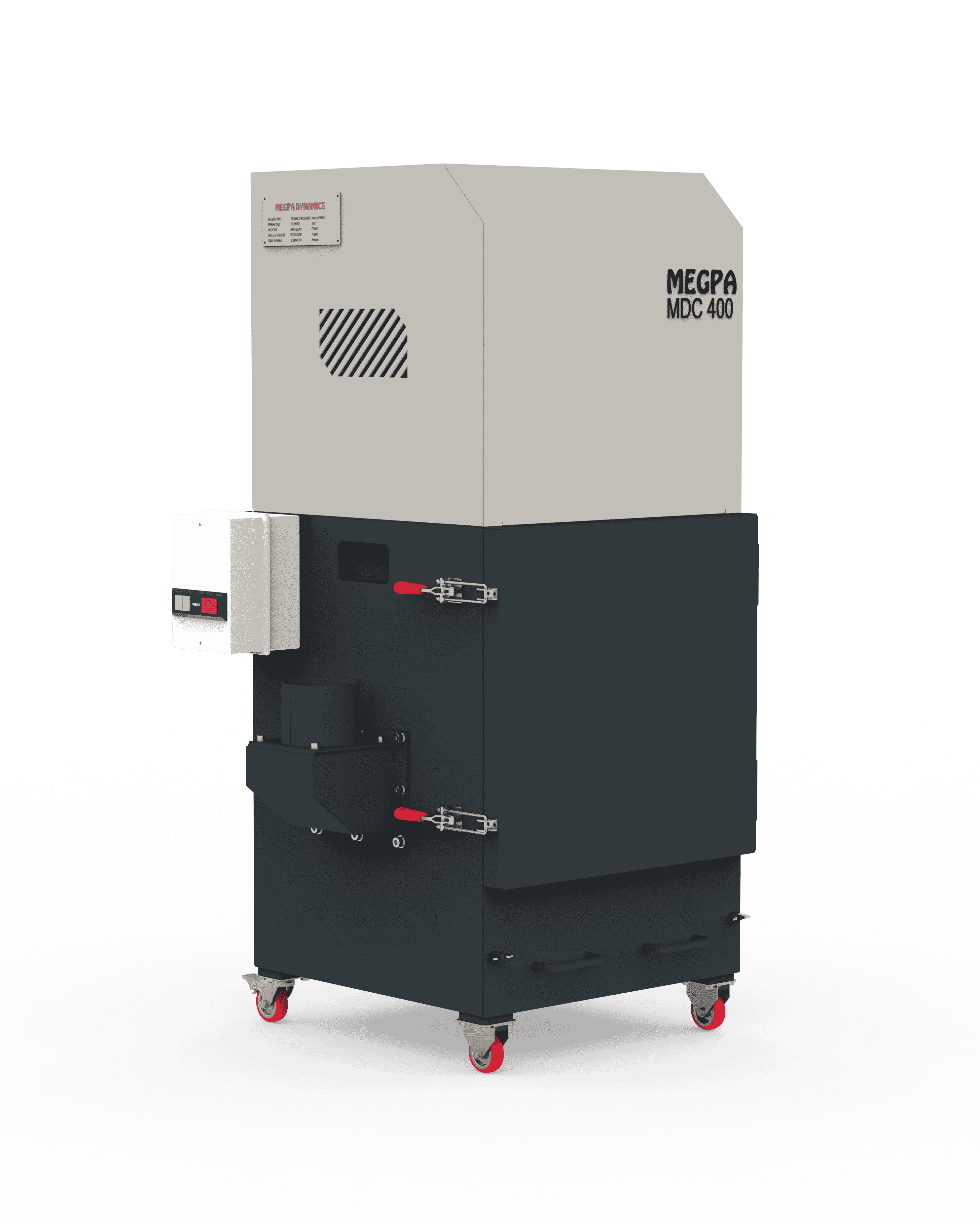

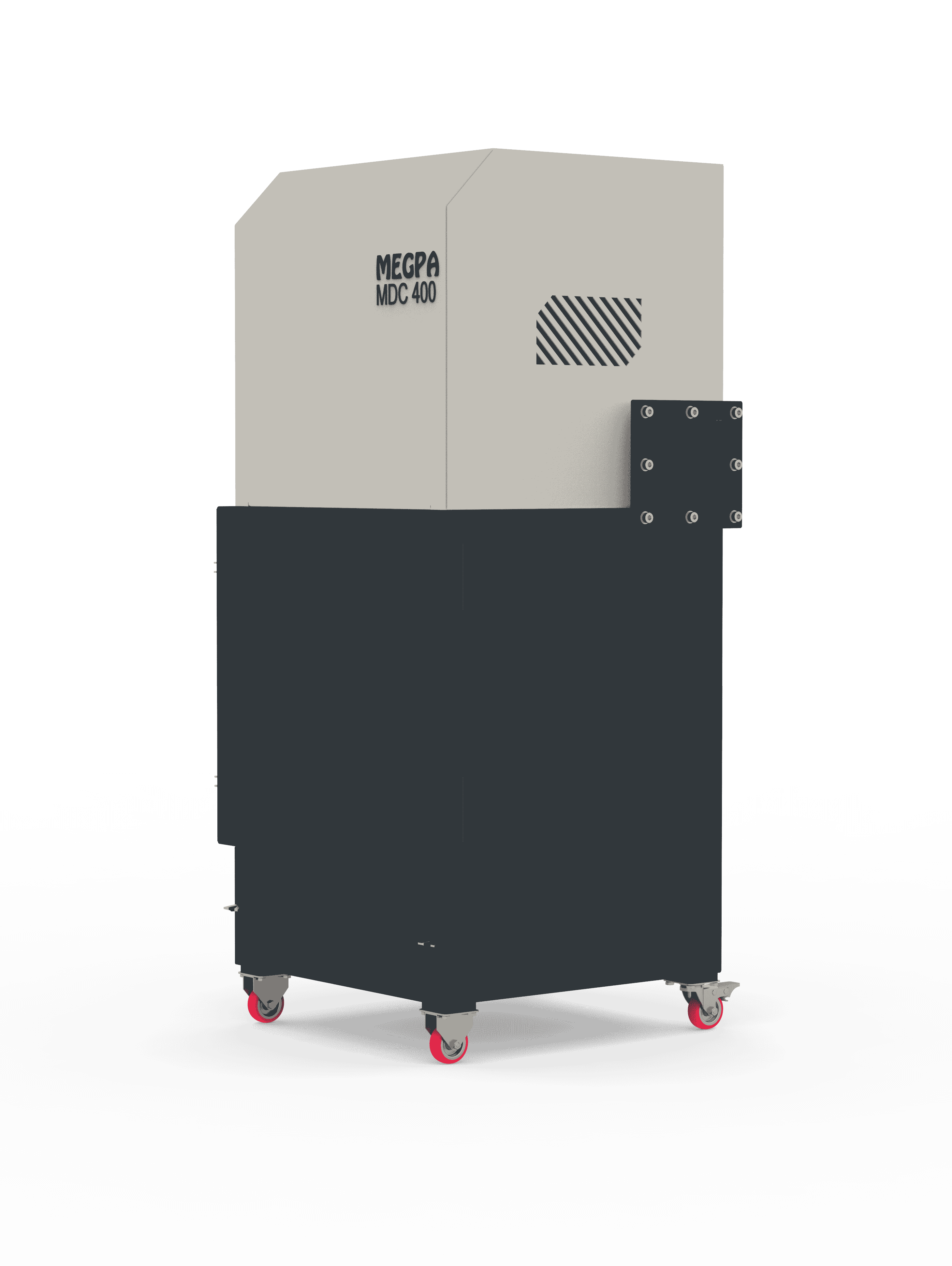

The Megpa MDC400 Mini Dust Collector is a compact and efficient extraction system designed to meet the requirements of medium- to heavy-duty metal and non-metal dust and fume control across a wide range of industrial applications. Engineered for flexibility and ease of use, the MDC400 is lightweight, easily portable, and equipped with lockable caster wheels for safe movement within the workspace. Its specially crafted design ensures effective capture of dust and fumes at the source, improving air quality and operator safety.
Features
Low noise design
Heavy Duty Construction
Portable and Compact design
Durable and Rugged Construction
Single stage Filtration
Castor wheels with lock
Easy filter replacement
External filter choke signal
Variable speed control
Applications
Surface Grinding
Tool & Cutter Grinding / Grinders
Profile & Bench Grinding
Pedestal & Disc Grinding
Dental Milling
